Raptor XL

A house single color graphic
Ideal for up to 3 Acres
Starting at
$4,649
MSRP
OR
$100.84
USD monthly*
Details

Prices may vary and are subject to change without notice.  Please visit your local dealer for details.

Find My Retailer

The Raptor® XL features premium upgrades to the Raptor X. The XL provides some added comfort with a more premium seat and Flex Forks® for a smoother ride. Also, there is an option for additional horsepower with a 23hp Kawasaki® FR Engine. More comfort and more power backed by a 3yr / 300hr limited warranty.

Battery Type
Engine
Deck Sizes
21.5HP - Kawasaki FR651
42"
23HP - Kawasaki FR691
54"

Raptor Series Shared Features

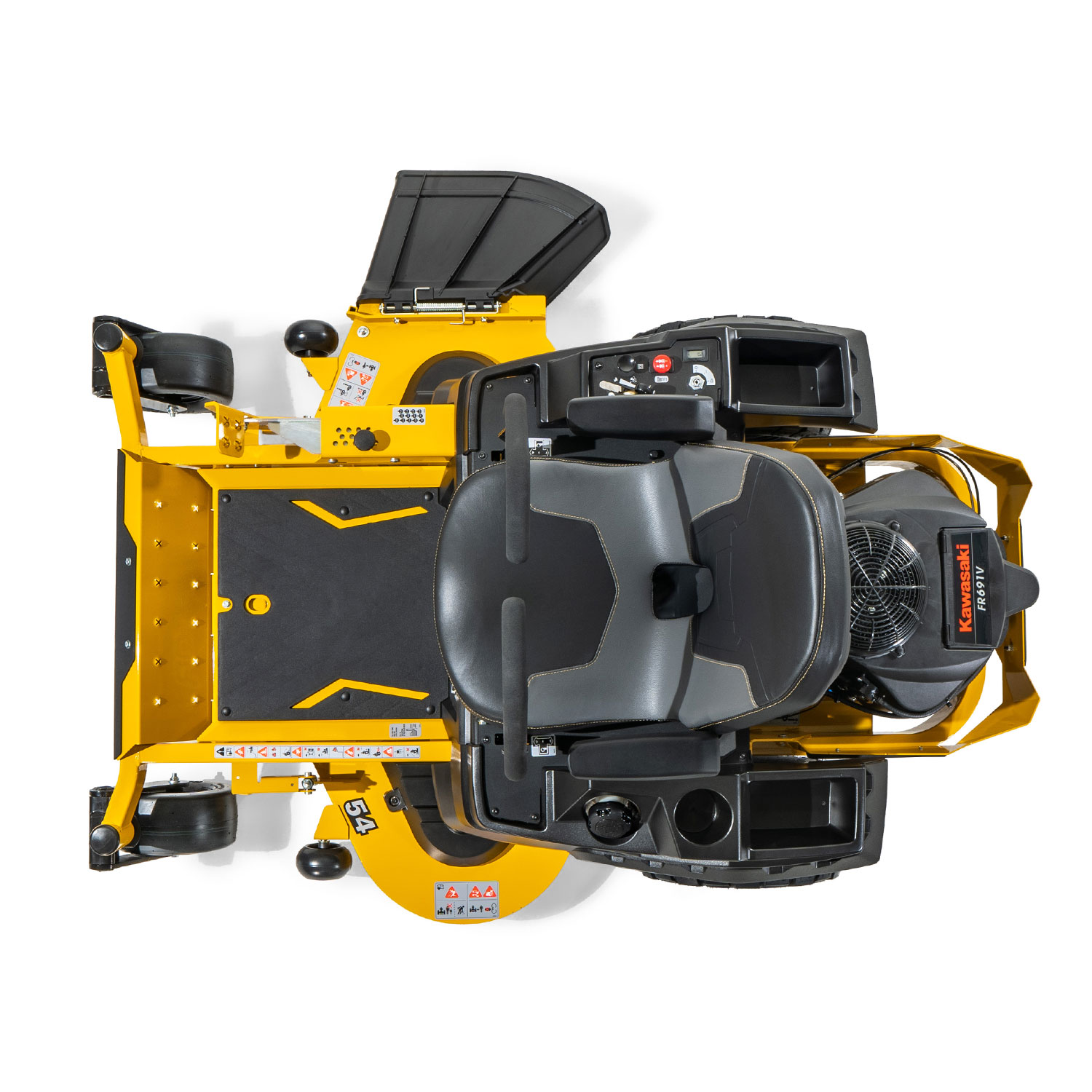

A yellow zero-turn mower shown from above.
1

Welded Steel Deck

Welded fabricated steel deck helps add durability and can extend the mower's life.

2

Wider Stance

Designed to provide ample room adding to the comfort for the operator.

3

SmoothTrak™ Steering

Precision control designed to help trim and maneuver easily around obstacles.

4

Bolstered Seat

Helps provide a comfortable ride with armrests and airflow to the back.

5

Rubber Floor Mat

Helps provide comfort by minimizing vibration on the operator's feet. Standard on all Raptor models.

6

Fabricated Frame

Continuous one-piece 1½ inch by 3 inch welded tubular frame.

7

Foot-Operated Deck Lift

Easily adjust the deck height between 1.5" - 4.5".

8

Easy to Service

Flip-up seat pan, removable floor pan, vented pulley covers.

9

Exclusive BigBite™ Rear Tires

We worked directly with the tire manufacturer on this design.

x graphic
10

Kawasaki® Power

Powered by a V-Twin Kawasaki® Engine.

x graphic
Image of the engine on the rear of a mower

Kawasaki® Engine

Powered by a V-Twin Kawasaki Engine.

Watch video
Learn More
Image of dark gray seat with a vent hole on a mower

Bolstered Seat

Compared to Raptor X seat, the XL seat features a higher back and added padding with the same armrests and air flow to the back.

Watch video
Learn More
Image close up on the front tire of a mower with a black fork holding the tire on

FlexForks®

Standard on the XL, these flexing front forks help cushion the ride for a smoother mowing experience.

Watch video
Learn More

Specs

Download specs PDF

Key Specs

Battery Type

Engine Manufacturer

Engine Horsepower

Battery Voltage

Transmission

Fuel Capacity

Ground Speed (FWD)

Cutting Width

Cutting Height

Front Tire

Drive Tire

Warranty

Battery

Engine

Engine Manufacturer

Battery Type

Battery Voltage

Engine Horsepower

Charge Time

Displacement

Watt Hours

Cooling

Air Cleaner

Battery GaUge

Start Method

Engine Warranty

Drive System

Type

Transmission

Hydraulic Lines

Reservoir Capacity

Hydraulic Cooling

Fuel Capacity

Ground Speed (FWD)

Parking Brake

Deck

Cutting Width

Cutting Height

Deck Depth

Deck Lift

Number of Blades

Blade Length

Blade Tip Speed

Spindles

Deck Engagement

Deck Material

Spindle Mounts

IMPACT Trim Area

Anti-Scalp Wheels

Construction

Frame

Engine Plate

Operator Platform

Front AxLE

Front Caster Wheel

Front Caster Fork

General

Seat

Cup Holder

Dimensions

Front Tire (Inches)

Drive Tire (inches)

Wing Tire (inches)

Weight (lbs)

Height (inches)

Length (inches)

Width w/ chute up (inches)

Tire-to-tire Width (inches)

Productivity (acres per hour)

Warranty

Warranty

Dimensions with Catcher

Catcher Style

Powered / Non-Powered

Catcher Capacity

Mower Length w/ Catcher

Mower Width w/ Catcher

Style 2: Catcher Style

Style 2: Powered / Non-Powered

Style 2: Catcher Capacity

Style 2: Mower Length w/ Catcher

Style 2: Mower Width w/ Catcher

Image of the front three quarters of a yellow Hustler mower

Raptor XL

Key Specs

Engine Manufacturer

Kawasaki FR651

Engine Horsepower

21.5

Transmission

Hydro-Gear ZT-2200

Fuel Capacity

3 gal.

Ground Speed (FWD)

Up to 7 mph

Cutting Width

42"

Cutting Height

1.5" to 4.5"

Front Tire

11 X 5

Drive Tire

18 X 8.5-8 BigBite™

Warranty

3 Year/300 hour residential

Engine

Engine Manufacturer

Kawasaki FR651

Engine Horsepower

21.5

Displacement

726cc

Cooling

Air Cooled

Air Cleaner

Engine Warranty

3 Year Warranty

Drive System

Type

Dual Hydrostatic

Transmission

Hydro-Gear ZT-2200

Hydraulic Lines

Reservoir Capacity

Hydraulic Cooling

Fuel Capacity

3 gal.

Ground Speed (FWD)

Up to 7 mph

Parking Brake

Integrated with steering levers

Deck

Cutting Width

42"

Cutting Height

1.5" to 4.5"

Deck Depth

4.5"

Deck Lift

Foot Operated

Number of Blades

2

Blade Length

20.50"

Blade Length

18,000

Spindles

Aluminum with 1" shaft and double lip sealed ball bearings

Deck Engagement

Ogura GT1.5

Deck Material

Fabricated 11 gauge steel

Spindle Mounts

Reinforced 7 gauge steel

Impanct Trim Area

1/4" x 1" steel bar

Anti-Scalp Wheels

Construction

Frame

1.5" X 3" steel tubing

Engine Plate

Operator Platform

Front Axel

Fabricated with sealed ball bearings

Front Caster Wheel

Sealed ball bearings

Front Caster Fork

FlexFork®

General

Seat

Bolstered high-back seat with armrests and built-in lumbar support

Cup Holder

Yes

Dimensions

Front Tire (inches)

11 X 5

Drive Tire (inches)

18 X 8.5-8 BigBite™

Wing Tire (inches)

Weight (lbs)

567

Height (inches)

42.6

Length (inches)

69.9"

Width w/ chute up (inches)

45.5"

Tire-to-tire Width (inches)

43

Productivity (acres per hour)

2.38

Warranty

Warranty

3 Year/300 hour residential

Dimensions with Catcher

Catcher Style

2-bag

Powered / Non-Powered

Non-powered

Catcher Capacity

5.4 bushel

Mower Length w/ Catcher

91.4

Mower Width w/ Catcher

56.5

Style 2: Catcher Style

Style 2: Powered / Non-Powered

Style 2: Catcher Capacity

Style 2: Mower Length w/ Catcher

Style 2: Mower Width w/ Catcher

Image of the front three quarters of a yellow Hustler mower

Raptor XL

Key Specs

Engine Manufacturer

Kawasaki FR691

Engine Horsepower

23

Transmission

Hydro-Gear ZT-2200

Fuel Capacity

3 gal.

Ground Speed (FWD)

Up to 7 mph

Cutting Width

54"

Cutting Height

1.5" to 4.5"

Front Tire

11 X 6

Drive Tire

18 X 10.5-8 BigBite™

Warranty

3 Year/300 hour residential

Engine

Engine Manufacturer

Kawasaki FR691

Engine Horsepower

23

Displacement

726cc

Cooling

Air Cooled

Air Cleaner

Engine Warranty

3 Year Warranty

Drive System

Type

Dual Hydrostatic

Transmission

Hydro-Gear ZT-2200

Hydraulic Lines

Reservoir Capacity

Hydraulic Cooling

Fuel Capacity

3 gal.

Ground Speed (FWD)

Up to 7 mph

Parking Brake

Integrated with steering levers

Deck

Cutting Width

54"

Cutting Height

1.5" to 4.5"

Deck Depth

4.5"

Deck Lift

Foot Operated

Number of Blades

3

Blade Length

18.50"

Blade Length

18,800

Spindles

Aluminum with 1" shaft and double lip sealed ball bearings

Deck Engagement

Ogura GT1.5

Deck Material

Fabricated 11 gauge steel

Spindle Mounts

Reinforced 7 gauge steel

Impanct Trim Area

1/4" x 1" steel bar

Anti-Scalp Wheels

Construction

Frame

1.5" X 3" steel tubing

Engine Plate

Operator Platform

Front Axel

Fabricated with sealed ball bearings

Front Caster Wheel

Sealed ball bearings

Front Caster Fork

FlexFork®

General

Seat

Bolstered high-back seat with armrests and built-in lumbar support

Cup Holder

Yes

Dimensions

Front Tire (inches)

11 X 6

Drive Tire (inches)

18 X 10.5-8 BigBite™

Wing Tire (inches)

Weight (lbs)

594

Height (inches)

42.6

Length (inches)

71.7

Width w/ chute up (inches)

58.6

Tire-to-tire Width (inches)

46.5

Productivity (acres per hour)

3.05

Warranty

Warranty

3 Year/300 hour residential

Dimensions with Catcher

Catcher Style

2-bag

Powered / Non-Powered

Non-powered

Catcher Capacity

5.4 bushel

Mower Length w/ Catcher

91.4

Mower Width w/ Catcher

69.5

Style 2: Catcher Style

Style 2: Powered / Non-Powered

Style 2: Catcher Capacity

Style 2: Mower Length w/ Catcher

Style 2: Mower Width w/ Catcher

Offers & Programs Available

Accessories

Rear of a yellow mower with a black 2-bag catcher mounted on the back

2-Bag Non-Powered Bagger

The bagger has a 5.4 bushel capacity.

Fits
Raptor X
Raptor XL
Raptor XD
Image of the black mulch kit items on a white background.

Mulch Kit

Recycle clippings back into the soil and reclaim nutrients for your lawn.

Fits
Raptor X
Raptor XL
Raptor XD
Raptor XDX
Dash XD
Surfer Pro
Image of lights mounted on the front of a yellow mower

Light Kit

Extend your productivity into the late hours with our optional light kit.

Fits
Raptor X
Raptor XL
Raptor XD
Raptor XDX
Dash XD
Image of black metal extension on a white background

Steering Lever Extension Kit

Allows height adjustment of steering levers to make your mowing experience as comfortable as possible.

Fits
Dash XD
Raptor X
Raptor XL
Raptor XD
Raptor XDX
A yellow hitch on white background

Hitch Kit

A kit for adding a hitch receiver to your mower.

Fits
Raptor X
Raptor XL
Raptor XD
Raptor XDX
A close up view of a two usb ports with the cover off.

USB Kit

A kit for adding a usb port to your mower.

Fits
Raptor X
Raptor XL
Raptor XD
Raptor XDX
Image of a black rubber rectangular flap and mounting bolts on a white background

Stripe Kit

Helps provide a professional manicured finish to your lawn.

Fits
Raptor X
Raptor XL
Raptor XD
Raptor XDX
Dash XD
