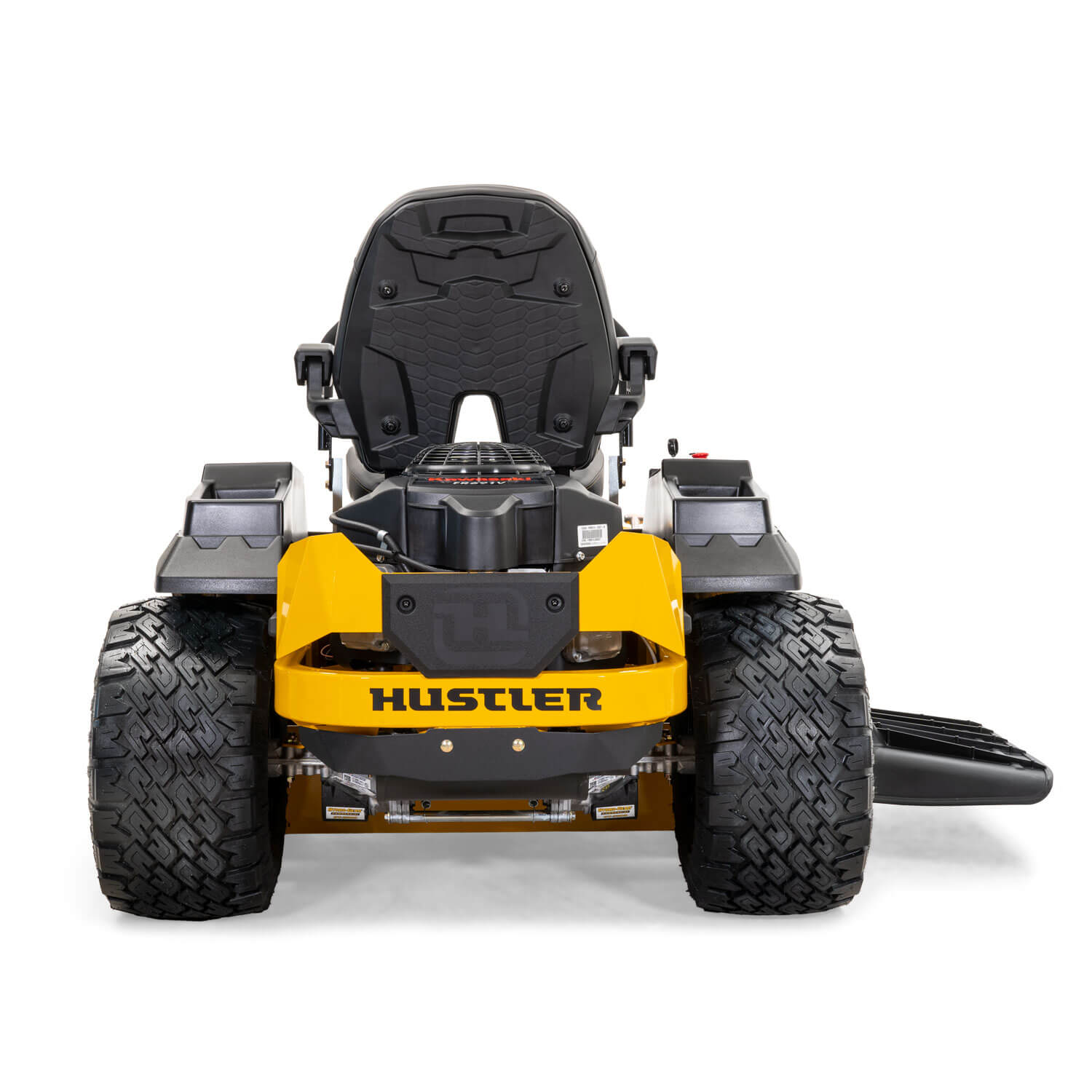

Raptor XDX

A house single color graphic
Ideal for up to 5 Acres
Starting at
$6,549
MSRP
OR
$155.93
USD monthly*
Details

Prices may vary and are subject to change without notice.  Please visit your local dealer for details.

Find My Retailer

The Raptor® XDX is at the top of Hustler's residential zero-turn category. It has commercial-grade features like a 10-gauge fabricated deck, cast steel deck hangers, vented and tool-less removable pulley covers, and reaches up to 8mph with Hydro-Gear® ZT-3100® commercial transmissions. The 5-inch-deep deck is designed to allow for mowing through thick grass at top speeds. The heavy-duty XDX is backed by a 3yr / 300hr limited warranty and 1yr / 300hr commercial limited warranty.

Battery Type
Engine
Deck Sizes
21.5HP - Kawasaki FR651
48"
23HP - Kawasaki FR691
54"
24HP - Kawasaki FR730
60”

Raptor Series Shared Features

A yellow zero-turn mower shown from above.
1

Welded Steel Deck

Welded fabricated steel deck helps add durability and can extend the mower's life.

2

Wider Stance

Designed to provide ample room adding to the comfort for the operator.

3

SmoothTrak Steering

Precision control designed to help trim and maneuver easily around obstacles.

4

Bolstered Seat

Helps provide a comfortable ride with armrests and airflow to the back.

5

Rubber Floor Mat

Helps provide comfort by minimizing vibration on the operator's feet. Standard on all Raptor models.

6

Fabricated Frame

Continuous one-piece 1½ inch by 3 inch welded tubular frame.

7

Foot-Operated Deck Lift

Easily adjust the deck height between 1.5" - 4.5".

8

Easy to Service

Flip-up seat pan, removable floor pan, vented pulley covers.

9

Exclusive BigBite Rear Tires

We worked directly with the tire manufacturer on this design.

x graphic
10

Kawasaki® Power

Powered by a V-Twin Kawasaki® Engine.

x graphic
Image close up on the tread of the rear drive tire of a mower

22" BigBite™ Tires

Aggressive tire to help handle tough jobs.

Watch video
Learn More
Close up image of the black and gray seat of a mower

Extra High-back Seat

An extra high-back seat (compared to the Raptor X seat) with armrests.

Watch video
Learn More
Close up image of a yellow mower deck

Commercial Grade Deck

10 gauge steel and 11 gauge front bull nose bumper designed for durability. Up to 60” deck sizes available.

Watch video
Learn More

Specs

Download specs PDF

Key Specs

Battery Type

Engine Manufacturer

Engine Horsepower

Battery Voltage

Transmission

Fuel Capacity

Ground Speed (FWD)

Cutting Width

Cutting Height

Front Tire

Drive Tire

Warranty

Battery

Engine

Engine Manufacturer

Battery Type

Battery Voltage

Engine Horsepower

Charge Time

Displacement

Watt Hours

Cooling

Air Cleaner

Battery GaUge

Start Method

Engine Warranty

Drive System

Type

Transmission

Hydraulic Lines

Reservoir Capacity

Hydraulic Cooling

Fuel Capacity

Ground Speed (FWD)

Parking Brake

Deck

Cutting Width

Cutting Height

Deck Depth

Deck Lift

Number of Blades

Blade Length

Blade Tip Speed

Spindles

Deck Engagement

Deck Material

Spindle Mounts

IMPACT Trim Area

Anti-Scalp Wheels

Construction

Frame

Engine Plate

Operator Platform

Front AxLE

Front Caster Wheel

Front Caster Fork

General

Seat

Cup Holder

Dimensions

Front Tire (Inches)

Drive Tire (inches)

Wing Tire (inches)

Weight (lbs)

Height (inches)

Length (inches)

Width w/ chute up (inches)

Tire-to-tire Width (inches)

Productivity (acres per hour)

Warranty

Warranty

Dimensions with Catcher

Catcher Style

Powered / Non-Powered

Catcher Capacity

Mower Length w/ Catcher

Mower Width w/ Catcher

Style 2: Catcher Style

Style 2: Powered / Non-Powered

Style 2: Catcher Capacity

Style 2: Mower Length w/ Catcher

Style 2: Mower Width w/ Catcher

Image of front three quarters of yellow mower showing trim edge of deck

Raptor XDX

Key Specs

Engine Manufacturer

Kawasaki FR651

Engine Horsepower

21.5

Transmission

Hydro-Gear ZT-3100®

Fuel Capacity

3 gal.

Ground Speed (FWD)

Up to 8 mph

Cutting Width

48"

Cutting Height

1.5" to 4.5"

Front Tire

13 x 6.5

Drive Tire

22 x 9.5-10 BigBite™

Warranty

3 Year/300 hour residential or 1 Year/300 hour commercial

Engine

Engine Manufacturer

Kawasaki FR651

Engine Horsepower

21.5

Displacement

726cc

Cooling

Air Cooled

Air Cleaner

Engine Warranty

3 Year Warranty

Drive System

Type

Dual Hydrostatic

Transmission

Hydro-Gear ZT-3100®

Hydraulic Lines

Reservoir Capacity

Hydraulic Cooling

Fuel Capacity

3 gal.

Ground Speed (FWD)

Up to 8 mph

Parking Brake

Integrated with steering levers

Deck

Cutting Width

48"

Cutting Height

1.5" to 4.5"

Deck Depth

5.0"

Deck Lift

Foot Operated

Number of Blades

3

Blade Length

16.50"

Blade Length

18,600

Spindles

Aluminum with 1" shaft and sealed ball bearings

Deck Engagement

Ogura GT1.5

Deck Material

Fabricated 10 gauge steel

Spindle Mounts

Reinforced 11 gauge steel

Impanct Trim Area

11 ga. formed channel w/ rolled edge

Anti-Scalp Wheels

Construction

Frame

1.5" X 3.0" steel tubing

Engine Plate

Operator Platform

Front Axel

Fabricated with sealed ball bearings

Front Caster Wheel

Sealed ball bearings

Front Caster Fork

Fabricated 3/8" steel

General

Seat

Bolstered extra high-back seat with armrests and built-in lumbar support

Cup Holder

Yes

Dimensions

Front Tire (inches)

13 x 6.5

Drive Tire (inches)

22 x 9.5-10 BigBite™

Wing Tire (inches)

Weight (lbs)

646

Height (inches)

43.7

Length (inches)

71.1

Width w/ chute up (inches)

50.6

Tire-to-tire Width (inches)

45.8

Productivity (acres per hour)

3.10

Warranty

Warranty

3 Year/300 hour residential or 1 Year/300 hour commercial

Dimensions with Catcher

Catcher Style

2-bag

Powered / Non-Powered

Powered

Catcher Capacity

7.2 bushel

Mower Length w/ Catcher

92.3

Mower Width w/ Catcher

57.2

Style 2: Catcher Style

Style 2: Powered / Non-Powered

Style 2: Catcher Capacity

Style 2: Mower Length w/ Catcher

Style 2: Mower Width w/ Catcher

Image of front three quarters of yellow mower showing trim edge of deck

Raptor XDX

Key Specs

Engine Manufacturer

Kawasaki FR691

Engine Horsepower

23

Transmission

Hydro-Gear ZT-3100®

Fuel Capacity

3 gal.

Ground Speed (FWD)

Up to 8 mph

Cutting Width

54"

Cutting Height

1.5" to 4.5"

Front Tire

13 x 6.5

Drive Tire

22 x 11-10 BigBite™

Warranty

3 Year/300 hour residential or 1 Year/300 hour commercial

Engine

Engine Manufacturer

Kawasaki FR691

Engine Horsepower

23

Displacement

726cc

Cooling

Air Cooled

Air Cleaner

Engine Warranty

3 Year Warranty

Drive System

Type

Dual Hydrostatic

Transmission

Hydro-Gear ZT-3100®

Hydraulic Lines

Reservoir Capacity

Hydraulic Cooling

Fuel Capacity

3 gal.

Ground Speed (FWD)

Up to 8 mph

Parking Brake

Integrated with steering levers

Deck

Cutting Width

54"

Cutting Height

1.5" to 4.5"

Deck Depth

5.0"

Deck Lift

Foot Operated

Number of Blades

3

Blade Length

18.50"

Blade Length

18,900

Spindles

Aluminum with 1" shaft and sealed ball bearings

Deck Engagement

Ogura GT1.5

Deck Material

Fabricated 10 gauge steel

Spindle Mounts

Reinforced 11 gauge steel

Impanct Trim Area

11 ga. formed channel w/ rolled edge

Anti-Scalp Wheels

Construction

Frame

1.5" X 3.0" steel tubing

Engine Plate

Operator Platform

Front Axel

Fabricated with sealed ball bearings

Front Caster Wheel

Sealed ball bearings

Front Caster Fork

Fabricated 3/8" steel

General

Seat

Bolstered extra high-back seat with armrests and built-in lumbar support

Cup Holder

Yes

Dimensions

Front Tire (inches)

13 x 6.5

Drive Tire (inches)

22 x 11-10 BigBite™

Wing Tire (inches)

Weight (lbs)

678

Height (inches)

43.7

Length (inches)

71.1

Width w/ chute up (inches)

57

Tire-to-tire Width (inches)

48.6

Productivity (acres per hour)

3.49

Warranty

Warranty

3 Year/300 hour residential or 1 Year/300 hour commercial

Dimensions with Catcher

Catcher Style

2-bag

Powered / Non-Powered

Powered

Catcher Capacity

7.2 bushel

Mower Length w/ Catcher

92.3

Mower Width w/ Catcher

63.2

Style 2: Catcher Style

Style 2: Powered / Non-Powered

Style 2: Catcher Capacity

Style 2: Mower Length w/ Catcher

Style 2: Mower Width w/ Catcher

Image of front three quarters of yellow mower showing trim edge of deck

Raptor XDX

Key Specs

Engine Manufacturer

Kawasaki FR730

Engine Horsepower

24

Transmission

Hydro-Gear ZT-3100®

Fuel Capacity

3 gal.

Ground Speed (FWD)

Up to 8 mph

Cutting Width

60"

Cutting Height

1.5" to 4.5"

Front Tire

13 x 6.5

Drive Tire

22 x 11-10 BigBite™

Warranty

3 Year/300 hour residential or 1 Year/300 hour commercial

Engine

Engine Manufacturer

Kawasaki FR730

Engine Horsepower

24

Displacement

726cc

Cooling

Air Cooled

Air Cleaner

Engine Warranty

3 Year Warranty

Drive System

Type

Dual Hydrostatic

Transmission

Hydro-Gear ZT-3100®

Hydraulic Lines

Reservoir Capacity

Hydraulic Cooling

Fuel Capacity

3 gal.

Ground Speed (FWD)

Up to 8 mph

Parking Brake

Integrated with steering levers

Deck

Cutting Width

60"

Cutting Height

1.5" to 4.5"

Deck Depth

5.0"

Deck Lift

Foot Operated

Number of Blades

3

Blade Length

20.50"

Blade Length

18,400

Spindles

Aluminum with 1" shaft and sealed ball bearings

Deck Engagement

Ogura GT1.5

Deck Material

Fabricated 10 gauge steel

Spindle Mounts

Reinforced 11 gauge steel

Impanct Trim Area

11 ga. formed channel w/ rolled edge

Anti-Scalp Wheels

Construction

Frame

1.5" X 3.0" steel tubing

Engine Plate

Operator Platform

Front Axel

Fabricated with sealed ball bearings

Front Caster Wheel

Sealed ball bearings

Front Caster Fork

Fabricated 3/8" steel

General

Seat

Bolstered extra high-back seat with armrests and built-in lumbar support

Cup Holder

Yes

Dimensions

Front Tire (inches)

13 x 6.5

Drive Tire (inches)

22 x 11-10 BigBite™

Wing Tire (inches)

Weight (lbs)

710

Height (inches)

43.7

Length (inches)

71.1

Width w/ chute up (inches)

62.2

Tire-to-tire Width (inches)

48.6

Productivity (acres per hour)

3.88

Warranty

Warranty

3 Year/300 hour residential or 1 Year/300 hour commercial

Dimensions with Catcher

Catcher Style

2-bag

Powered / Non-Powered

Powered

Catcher Capacity

7.2 bushel

Mower Length w/ Catcher

92.3

Mower Width w/ Catcher

69.2

Style 2: Catcher Style

Style 2: Powered / Non-Powered

Style 2: Catcher Capacity

Style 2: Mower Length w/ Catcher

Style 2: Mower Width w/ Catcher

Offers & Programs Available

Accessories

Image of a 2-bag grass catcher mounted on the back of a yellow mower

2-Bag Powered Bagger

Bagger has a 7.2 bushel capacity.

Fits
Raptor XDX
Image of front of a yellow mower with a black metal grass bagger mounted on the side

Steel Side Bagger

Easy-on, easy-off bagger has a 3.5 bushel capacity.

Fits
FasTrak SDX
FasTrak
Raptor XDX
TrimStar
Image of mesh fabric bag mounted to the side of a yellow stand-on mower

Mesh Side Bagger

Easy-on, easy-off bagger has a 3-bushel capacity. (36" deck only on Super S)

Fits
TrimStar
Super S
Raptor XDX
FasTrak
FasTrak SDX
Surfer Pro
Image of the black mulch kit items on a white background.

Mulch Kit

Recycle clippings back into the soil and reclaim nutrients for your lawn.

Fits
Raptor X
Raptor XL
Raptor XD
Raptor XDX
Dash XD
Surfer Pro
Image of a black front fork with the front tire mounted on a yellow mower

Flex Forks®

Shock absorbing front caster forks improve operator comfort and provide a more even cut, especially over uneven terrain and at higher speeds.

Fits
Raptor X
Raptor XD
Raptor XDX
Image of lights mounted on the front of a yellow mower

Light Kit

Extend your productivity into the late hours with our optional light kit.

Fits
Raptor X
Raptor XL
Raptor XD
Raptor XDX
Dash XD
Image of black metal extension on a white background

Steering Lever Extension Kit

Allows height adjustment of steering levers to make your mowing experience as comfortable as possible.

Fits
Dash XD
Raptor X
Raptor XL
Raptor XD
Raptor XDX
A yellow hitch on white background

Hitch Kit

A kit for adding a hitch receiver to your mower.

Fits
Raptor X
Raptor XL
Raptor XD
Raptor XDX
Image of gray text reading high vacuum kit on a white background.

High Vacuum Deck Kit

Improves vacuum and cut quality while reducing blowout in thin/dry grass conditions.

Fits
Raptor XDX
Image of gray text reading deck lift assist on a white background.

Deck Lift Assist

Adjustable spring deck lift kit to assist in raising and lowering deck.

Fits
Raptor XDX
A close up view of a two usb ports with the cover off.

USB Kit

A kit for adding a usb port to your mower.

Fits
Raptor X
Raptor XL
Raptor XD
Raptor XDX
Image of a black rubber rectangular flap and mounting bolts on a white background

Stripe Kit

Helps provide a professional manicured finish to your lawn.

Fits
Raptor X
Raptor XL
Raptor XD
Raptor XDX
Dash XD
